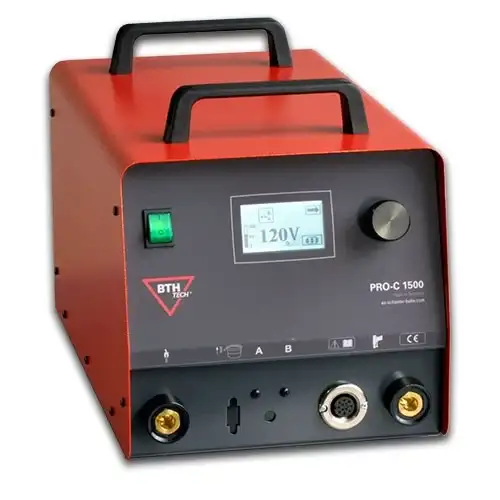

Automatic capacitor discharge welder (PRO-C 1500)

The automatic capacitor discharge welder (PRO-C 1500) is designed for welding studs, weld bushings, and other metallic elements using capacitor discharge technology. It features a capacity of 132,000 µF (switchable to 88,000 µF or 44,000 µF), offering maximum operational flexibility according to application requirements.

All functions and process parameters are clearly displayed on a large screen. The microprocessor control and continuous regulation of the charging voltage ensure high precision, delivering consistent, reliable, and repeatable welding results, even in high-frequency production cycles. The inverter charging board, equipped with an electronic timer, allows extremely fast charging times, enabling quick welding sequences and improving efficiency in industrial processes.

The machine is equipped with pre-installed welding programs, useful for quickly selecting the correct parameters based on the type of operation. It is also possible to save customized programs tailored to the user's specific production needs. The integrated welding parameter monitoring system enables effective real-time quality control. By default, the data from the last ten welds is saved, but with the optional memory, up to 24,500 cycles can be stored, with the ability to export data via USB interface for analysis and traceability on a PC.

In its optional configuration, the welder (PRO-C 1500) can be equipped with a control module for the VBZ automatic feeder and an automatic stud welding gun, thus expanding the system’s functionality in highly automated environments.

Among the available accessories, the PRO-SPLIT unit allows the simultaneous operation of up to four welding guns, each with independent settings for regulation, voltage, and charging capacity. The integrated adapter automatically detects which gun is in use, making the entire system extremely versatile and suitable for multi-component production.
