Automatic CD welding bench (F4050)

A CNC stud welding machine is an automated system that controls the position and sequence of stud welding operations through programmed coordinates, helping manufacturers achieve accurate fixing points with consistent results across repeated production cycles.

Across the UK manufacturing sector, from sheet metal fabrication companies to engineering subcontractors and electrical enclosure manufacturers, production teams are increasingly looking for practical automation solutions that improve efficiency without adding unnecessary complexity.

When components require multiple fixing points, frequent product changes or high repeatability, manual stud welding can become difficult to control. Variations in positioning, preparation time and operator dependency may affect both productivity and final quality. An automatic stud welding machine provides a more controlled approach, helping manufacturers reduce repetitive manual operations and improve process stability.

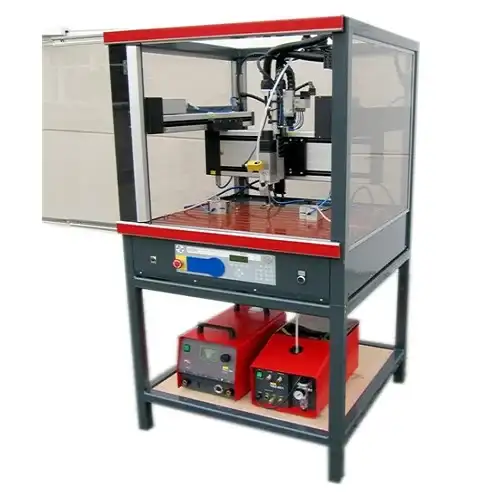

The F4050 CNC stud welding machine has been developed as a compact automated workstation for companies requiring reliable stud fixing on small and medium-sized metal components. Its design combines CNC positioning, flexible configuration and a reduced footprint, making it suitable for production environments where space and adaptability are important factors.

Rather than focusing only on maximum output, the F4050 provides a balanced solution for manufacturers that need controlled production, fast changeovers and consistent results across different component references. This makes it particularly suitable for specialist manufacturers, subcontractors and companies producing a variety of metal assemblies.

The system is designed for capacitor discharge stud welding, a process widely used where fast welding cycles, low heat input and a clean finished appearance are required. The technology helps minimise distortion on visible surfaces while creating strong and reliable fixing points on metal components.

The F4050 can weld threaded studs, plain studs and special fastening elements with diameters from 3 to 12 mm. Depending on the selected welding equipment, the machine can also support short-cycle arc welding and drawn arc welding processes, allowing manufacturers to adapt the system to different applications.

Typical applications include electrical cabinets, industrial equipment, fabricated sheet metal parts, electronic assemblies, technical enclosures and specialist components where accurate positioning and repeatable fastening are essential.

The compact design of the F4050 allows manufacturers to introduce automation without requiring a large production area. The welded steel frame provides mechanical stability, while the integrated electrical cabinet creates a complete workstation that can be easily incorporated into existing manufacturing layouts.

With a 400 x 500 mm working area, the machine is suited to smaller components and repeat production tasks where precision, accessibility and quick setup are more important than a large working envelope.

The CNC movement system uses stepper motors with encoder feedback to ensure reliable positioning during production. The machine provides positioning repeatability up to ±0.2 mm, helping maintain accurate stud placement from the first component to the last.

Production preparation is simplified through the PRO-STUD software, including DXF file conversion for easier programming from component drawings. This reduces setup time when introducing new parts and allows production teams to manage different programs more efficiently.

For manufacturers operating in quality-sensitive industries, the F4050 can include welding parameter monitoring. When combined with compatible PRO-C, PRO-I or PRO-D welding units, the system can monitor important process values including welding current, voltage and welding time.

Optional parameter storage and USB data transfer allow production information to be recorded for quality checks, traceability requirements and process analysis. This provides manufacturers with greater visibility over the welding operation and supports continuous improvement activities.

The F4050 can be configured with additional equipment according to specific production requirements, including automatic stud feeding systems, pneumatic clamping solutions, protective gas equipment, welding head spray systems and customised component fixtures.

Safety is integrated into the machine concept through solutions such as photocell safety barriers or protective sliding doors. These options help create a controlled working environment while maintaining practical access for component loading and unloading.

For manufacturers looking to reduce manual handling, improve production efficiency and achieve more predictable fastening results, the F4050 offers a compact route towards automated stud welding. It provides the advantages of CNC control while maintaining the flexibility required in modern manufacturing environments.

ATS supports customers throughout the complete project, from application analysis and technical configuration through to installation support and after-sales service. By combining technical consultancy with application knowledge, ATS helps companies identify the most suitable automatic stud welding machine configuration for their production requirements.
