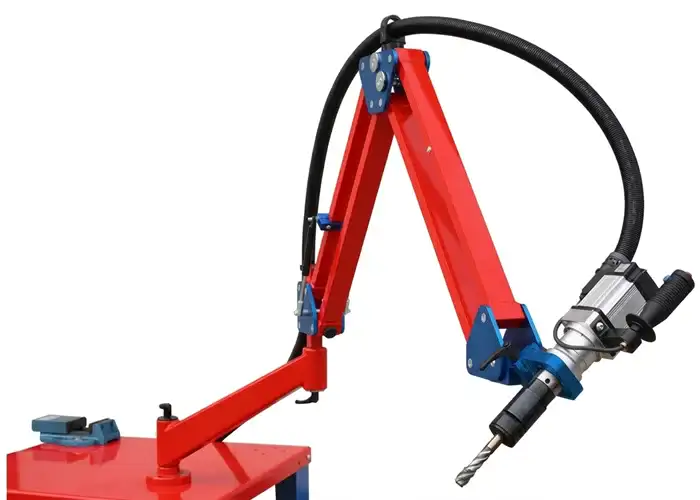

Electric tapping machine Joytap 3

JOYTAP 3 triple-arm electric tapper allows working within a radius of 1900mm.

The Joytap 3 electric tapping machine is divided into four different models according to the customer's threading needs:

Electric tapper JT3000 from M2 to M12

Electric tapper JT3150 from M3 to M16

Electric tapper JT3500 from M5 to M24

Electric tapper JT3750 from M8 to M36 (only with fixed head)

The JOYTAP 3 electric tapping machine is fitted as standard with a multidirectional head that allows threading in any position.

The main features of the JOYTAP 3 electric tapper are:

triple articulated balanced arm system made entirely of special aluminum that guarantees fast and precise alignment on the holes;

electric motor with 220V Brushless technology;

adjustment of the rotation speed based on the tapping diameter;

maximum anti-clockwise speed for rapid tool output;

Joystick with command buttons that facilitates tool alignment and speeds up processing;

minimum noise and reduced electricity consumption;

standard multidirectional head on all the machines that allows threading in any position;

positioning magnet for rapid spindle alignment;

balance and fluidity in movements guaranteed by adjustable gas springs and joints mounted on ball bearings;

possibility of threading blind and through holes thanks to adjustable clutches.

Various accessories and optional accessories are available for the JOYTAP 3 electric tapping machine, all visible on the downloadable technical sheet.
