Insulation weld pin with clip

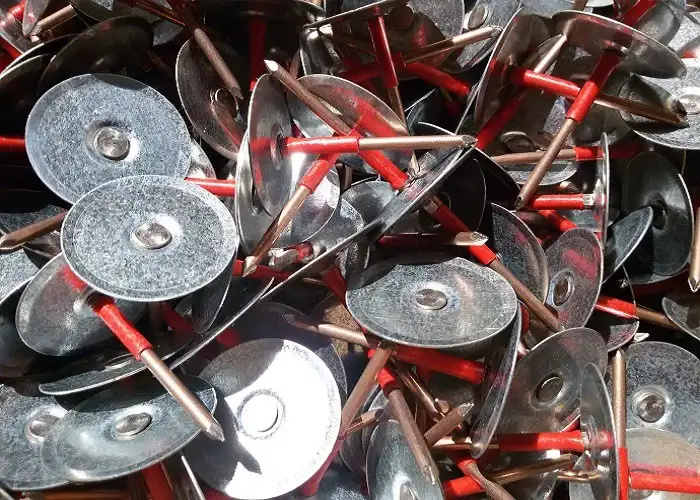

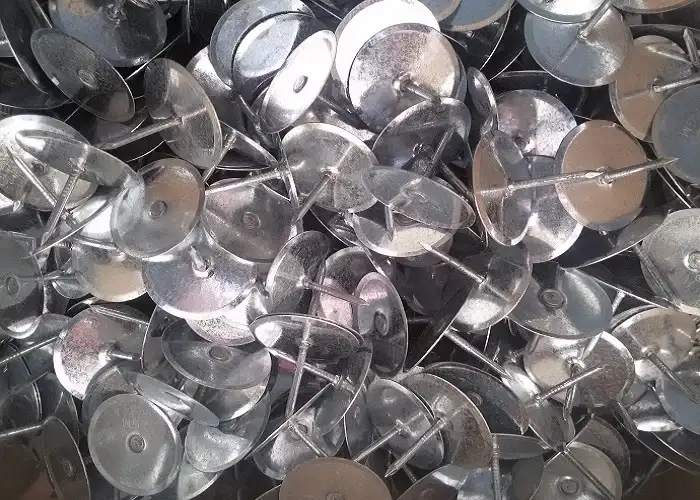

The cupped head insulation pins, designed for capacitor discharge welding, offer versatile solutions in various materials, including stainless steel, non-insulated steel, and partially insulated steel.

Capacitor discharge welding of pins with washers ensures a strong and durable fastening on insulating materials used in thermal, acoustic, and fireproof applications, maintaining excellent aesthetic quality. The use of capacitor discharge welding machines, equipped with the PIM-1B welding gun, facilitates a fast and efficient process, minimizing thermal input to the base material. These cupped head pins are ideal for applications in the HVAC sector: heating, ventilation, and air conditioning.

The ISOFIX capacitor discharge welding unit is the ideal equipment recommended by A.T.S. for welding these elements, specifically designed for this type of processing.

Dimensions of cupped head insulation pins not listed in the tables from our product data sheet can be supplied upon request.
