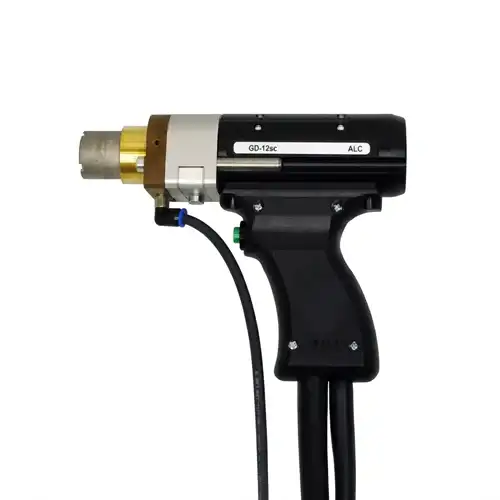

Stud welding gun GD12sc
Short-cycle arc stud welding for high-precision industrial applications
The GD 12sc stud welding gun is designed for short-cycle arc stud welding, ensuring high precision, repeatability, and reliability in industrial environments. The stroke adjustment from 0 to 2.5 mm allows fast and accurate setup, making it suitable for a wide range of welding applications.
Built with high-performance components, the system includes a linear ball-bearing piston, a 35 mm² welding cable, and automatic length compensation. These features ensure stable operation and consistent welding results even under demanding production conditions.
An optional integrated displacement measuring system is available to further enhance process control. It allows precise monitoring of key welding parameters, improving quality control and repeatability across production cycles.
Thanks to its robust construction, ergonomic design, and ease of use, the GD 12sc is a reliable solution for continuous industrial stud welding applications where performance and consistency are essential.
Contact us for technical information or to find the right configuration for your application.
Frequently asked questions
The GD 12sc gun offers a 0 to 2.5 mm stroke adjustment, allowing fast and precise setup depending on the stud type and welding conditions.
Yes, an optional displacement measuring system is available to monitor key parameters such as stroke, penetration depth, and speed, improving overall welding quality control.
