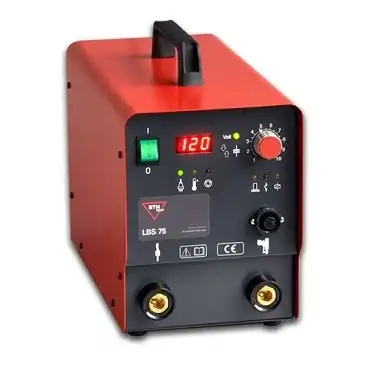

Capacitor discharge welder (LBS 75)
For capacitor discharge welding of studs
The (LBS 75) capacitor discharge welder, compliant with UNI EN ISO 14555, is designed for welding fasteners with diameters from Ø2 mm to Ø8 mm in steel, stainless steel A2-50, AISI 316, aluminum, and brass. With its compact size and a capacity of 66,000 µF, it delivers high performance in limited spaces.
Ideal for capacitor discharge welding of threaded studs, internally threaded bushings, and fasteners on thin sheets, it ensures an excellent aesthetic result thanks to reduced heat penetration on the sheet. It stands out for its ease of use and high welding quality. An advanced microprocessor guarantees safety and precision, while functions are clearly displayed via easy-to-read LEDs. The charging voltage is continuously adjustable using the front control knob.
The (LBS 75) capacitor discharge welder can be equipped with different manual guns depending on the material to be welded. The contact manual gun is ideal for steel, stainless steel, and galvanized sheets, while the gap manual gun, also known as a lift gun, is recommended for welding on aluminum and brass sheets.
Technical specifications
Capacitors discharge welding unit (LBS 75)
Welding guns
