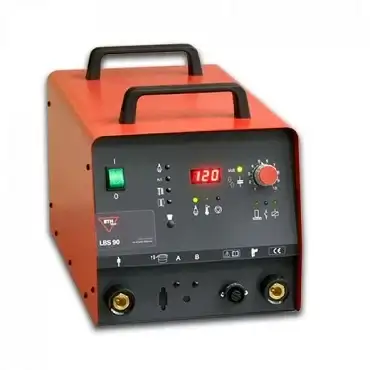

Capacitor discharge welder (LBS 90)

The (LBS 90) capacitor discharge welder, compliant with UNI EN ISO 14555, is designed for welding fasteners with diameters from Ø2 mm to Ø10 mm in steel, stainless steel A2-50, AISI 316, and, with specific adjustments, also in aluminum and brass. Thanks to its compact size and a capacity of 88,000 µF, it delivers high performance in limited spaces.

As an option, it can be equipped with a module for automatic stud loading, making it compatible with the VBZ automatic feeder. This system allows the welding of threaded studs, internally threaded bushings, and other fasteners managed by the feeder, improving production efficiency.

It stands out for its ease of use and high welding quality. An advanced microprocessor ensures safety and precision, while functions are clearly displayed via easy-to-read LEDs. The charging voltage is continuously adjustable using the front control knob. Ideal for capacitor discharge welding of threaded studs up to M10, internally threaded bushings, and fasteners on sheets of various thicknesses, it ensures an excellent aesthetic result thanks to reduced heat penetration.

The (LBS 90) capacitor discharge welder can be equipped with a contact manual gun, suitable for steel, stainless steel, and galvanized sheets, or a lift gun, ideal for aluminum and brass sheets.
