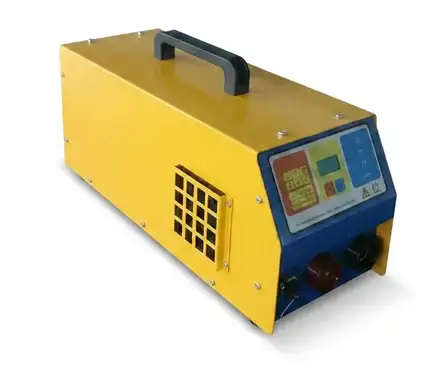

SW Capacitor Discharge Stud Welder for Industrial Stud Welding

In modern manufacturing environments, where components must be assembled quickly while maintaining accuracy and a clean surface finish, capacitor discharge stud welding represents an effective solution for fixing threaded studs and metal fasteners onto thin sheet materials.

The SW Series stud welding machine has been developed for industrial applications requiring fast production cycles, consistent weld quality and minimal heat transfer to the workpiece. The process creates a strong permanent connection while reducing the risk of distortion, marking or damage to the surrounding material.

Unlike conventional joining methods that may require drilling, additional preparation or secondary operations, capacitor discharge welding allows studs and pins to be directly attached to the sheet metal surface with a highly localised energy release. This makes the technology particularly suitable for manufacturers working with precision components, fabricated sheet metal parts and assemblies where appearance and dimensional stability are important.

The operating principle is based on storing electrical energy inside a high-capacity capacitor bank and releasing it through a controlled discharge cycle. When the welding gun places the stud against the workpiece, the electrical discharge melts the stud tip and the base material simultaneously, creating a small and controlled weld pool that solidifies almost immediately.

With a welding cycle of only 1 to 3 milliseconds, the SW Series provides excellent process speed while maintaining repeatable welding performance. The reduced thermal input makes this technology particularly suitable for thin sheet metal welding from 0.5 mm thickness, where excessive heat could affect the final component quality.

The system can be used for welding threaded studs type pt, non threaded studs type ut and internal threaded studs type it (DIN EN ISO 13918) in materials including mild steel, stainless steel, aluminium and brass. It supports stud diameters from M3 to M8 (M10 depending on configuration) and lengths from 5 to 35 mm, making it suitable for a wide range of industrial applications.

Typical applications include sheet metal fabrication, industrial components, electrical cabinets, mechanical assemblies and manufacturing processes where reliable fastening, production efficiency and repeatability are required.

Before selecting a capacitor discharge stud welding system, several factors must be evaluated, including material type, sheet thickness, stud dimensions, production volume and integration requirements. ATS supports companies in analysing these parameters to identify the most suitable configuration for each specific application.

The SW welding gun has been designed to provide accurate positioning and stable operation throughout the welding cycle. The controlled contact pressure ensures a reliable electrical connection before the discharge starts, while the guided vertical movement helps achieve consistent stud positioning during the welding process.

The selection of a capacitor discharge stud welder should always consider the real production requirements rather than only the machine specifications. Material characteristics, component geometry, stud dimensions, operating conditions and production targets all influence the most effective solution.

ATS Lamberti supports manufacturers in choosing the correct SW Series configuration by providing technical consultancy, application evaluation, system configuration support and assistance in identifying the most suitable solution for the customer's production process. The standard to which this type of welding refers is DIN EN ISO 13918.

With dedicated technical support, ATS helps companies implement reliable and efficient stud welding solutions designed around their specific manufacturing needs.
