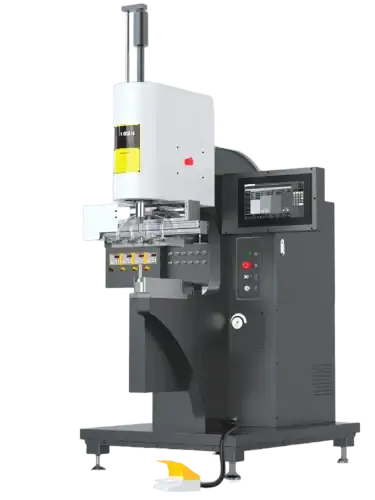

Fasteners 1024 Automatic Press for Self-Clinching Fasteners

In modern sheet metal manufacturing, production efficiency depends on the ability to achieve fast, reliable and repeatable assembly processes. The installation of self-clinching fasteners is a critical operation where precision, consistency and process control directly influence product quality and manufacturing costs. The Fasteners 1024 Automatic Press has been developed to provide manufacturers with a fully automated solution for high-volume production, combining advanced hydraulic technology, intelligent pressure control and automatic fastener feeding.

The Fasteners 1024 is an advanced automatic self-clinching press designed to install self-clinching nuts, threaded studs, standoff and other fastening elements into sheet metal components. It is engineered for companies that require higher productivity, reduced manual operations and a consistent fastening process capable of supporting demanding industrial applications.

Unlike traditional manual or semi-automatic solutions, the Fasteners 1024 automates the complete fastening operation, reducing operator dependency and ensuring that every component is processed with the same controlled parameters. This approach helps manufacturers reduce production variability, minimise assembly errors and improve overall manufacturing efficiency.

The machine has been designed for continuous industrial production and can integrate up to four automatic feeders for different types of fasteners. This configuration allows automatic supply and installation of multiple fastening elements without manual loading, making the system particularly suitable for repetitive production environments where cycle time reduction and process stability are essential.

A key feature of the Fasteners 1024 Automatic Press is the intelligent electronic pressure management system. The machine automatically controls the pressing force according to the installed feeding kit, ensuring the correct force is applied for each application. Through the 15" PLC touchscreen interface, operators can easily set production parameters, monitor working conditions and maintain complete control of every fastening cycle.

The combination of hydraulic power and electronic control provides exceptional process repeatability, with a pressure accuracy of ±1%. This level of control allows manufacturers to achieve consistent results throughout long production runs, improving quality standards and reducing the risk of rejected components caused by incorrect fastening operations.

With a maximum pressing force of 100 kN (10 tonnes), a throat depth of 600 mm, a working height of 450 mm and a punch stroke of 250 mm, the Fasteners 1024 is suitable for a wide range of sheet metal assembly applications. Its robust hydraulic structure has been developed to provide reliability, durability and stable performance in demanding manufacturing environments.

The integrated digital control system provides complete production monitoring, including piece counting, cycle management, fastening element quantity settings, punch movement control and automatic pressure adjustment. All relevant production information is available directly on the display, supporting operators in achieving efficient and controlled manufacturing processes.

Safety, reliability and ease of operation are key elements of the Fasteners 1024 design. The machine includes an advanced anti-crushing safety system with electrical conductivity verification, while the hydraulic cooling system ensures stable operation during extended production cycles and intensive industrial use.

The automatic feeding system can be configured for different fastening applications, including self-clinching nuts, threaded studs and spacers. This flexibility allows manufacturers to adapt the machine configuration according to component requirements, production volumes and future automation needs.

The Fasteners 1024 Automatic Press is designed for the permanent installation of self-clinching fasteners into compatible metal materials such as steel, stainless steel and aluminium, including applications involving thin sheet metal. It is suitable for industries including automotive, electronics, electrical equipment, HVAC, metal fabrication, industrial machinery, lighting systems and metal furniture manufacturing.

By combining automation, accurate force control and flexible feeding solutions, the Fasteners 1024 provides manufacturers with a complete solution for automated sheet metal fastening. The system helps companies increase output, reduce labour requirements, improve production consistency and achieve a more efficient manufacturing process compared with conventional fastening methods.

A.T.S. works alongside manufacturers to define the most suitable configuration of the Fasteners 1024 Automatic Press, evaluating component geometry, material type, sheet thickness, fastening requirements and production targets. From technical consulting and tooling selection to automation solutions and after-sales support, A.T.S. provides complete expertise for companies looking to optimise their sheet metal assembly processes and improve long-term production performance.
