Cylindrical closed-end blind rivet nut
Cylindrical rivet nuts closed end
Closed-end threaded inserts for thin sheet metal, designed to provide a secure threaded fixing while preventing fluid from passing directly through the base of the insert.
Closed-end round body blind rivet nuts are used to introduce internal threads into thin sheet metal and other suitable metal components where conventional tapping would not provide sufficient thread engagement.
Their distinguishing feature is the sealed base of the rivet nut body. Unlike open-ended inserts, which leave a continuous passage through the fixing, closed-end versions prevent fluids from travelling directly through the bottom of the insert. This makes them particularly useful where the threaded fixing is exposed to moisture or where the contents of an enclosure need additional protection.
The insert is secured by deforming a section of its body behind the sheet, creating a permanent threaded attachment point that can be accessed from the installation side.
A.T.S. supplies closed-end cylindrical threaded inserts in different material and head configurations, selected according to the requirements of the application.
Head Styles and Available Configurations
The choice of rivet nut depends on the sheet thickness, the available mounting space and the way the finished assembly needs to sit against adjoining components.

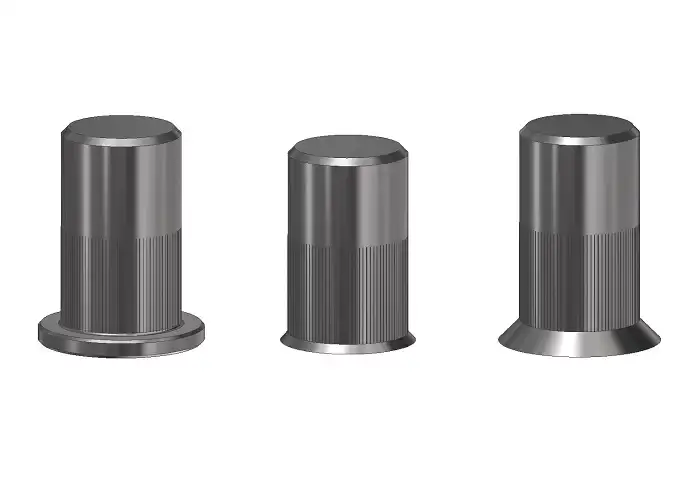

The A.T.S. range includes closed-end cylindrical inserts in A2 stainless steel, with flat and reduced heads, together with zinc-plated steel knurled versions available in different head configurations.
- Flat head: provides a bearing surface against the sheet and is suitable where a raised head can be accommodated.
- Reduced head: minimises the projection above the sheet surface, making it useful where installation space is restricted.
- Countersunk head: on compatible versions, allows the head to sit within a suitably countersunk hole, reducing its protrusion from the component.
Thread sizes, grip ranges and hole dimensions must be checked against the technical specification of the selected insert.
Installing Closed-End Rivet Nuts
Installation is carried out using a suitable blind rivet nut setting tool, including pneumatic or hydropneumatic equipment where compatible.
The insert is positioned in a correctly sized hole, and the setting tool applies an axial pulling force through its internal thread. This causes the designated section of the rivet nut body to deform behind the sheet, securing the fixing in position.
Once installed, the insert provides a threaded connection without welding or tapping the parent material. The process requires access to only one side of the assembly.
Consistent installation depends on matching the rivet nut's grip range to the material thickness, preparing the correct hole diameter and adjusting the setting tool to suit the insert.
Closed-End Fixings and Fluid Protection
Closed-end rivet nuts are commonly considered for metal housings, equipment enclosures, panels and fabricated assemblies where liquids or moisture may be present.
The closed base prevents direct passage through the threaded insert itself. However, a closed-end rivet nut does not automatically make the entire fixing watertight. Fluid may still pass between the rivet nut body and the surrounding sheet unless the joint has been designed and tested for sealing.
Where a defined level of water or fluid tightness is required, additional sealing arrangements may be necessary.
This distinction should be considered when specifying fixings for equipment exposed to liquids, cleaning processes or demanding operating environments.
Selecting the Right Insert with A.T.S.
The appropriate insert is determined by the required thread, sheet thickness, hole dimensions, head clearance and environmental conditions.
A.T.S. supplies closed-end blind rivet nuts and compatible installation equipment, supporting manufacturers in selecting fastening components for industrial assembly operations.
Available dimensions, grip ranges and product configurations are detailed in the threaded inserts technical datasheet.
